Product Detail

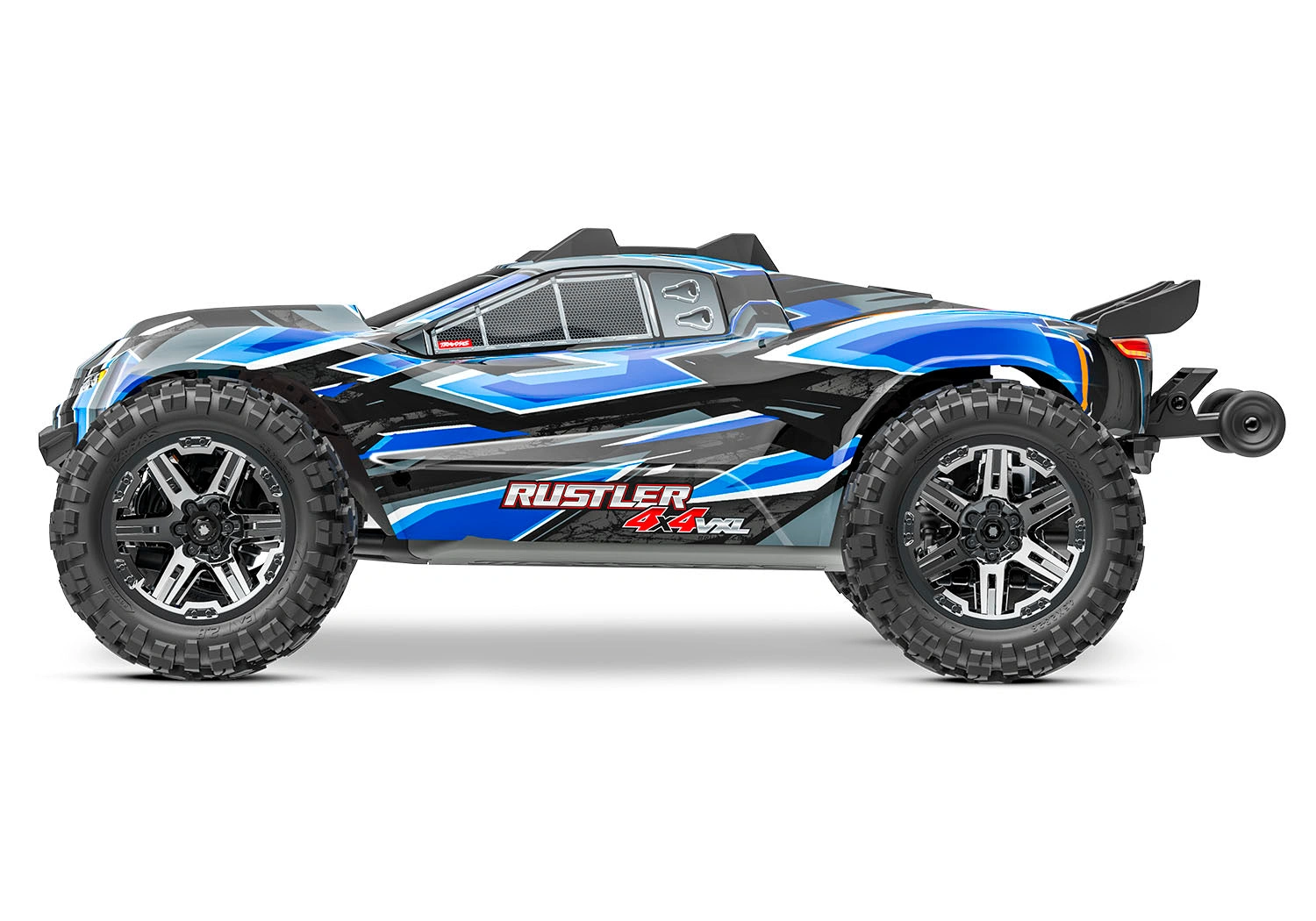

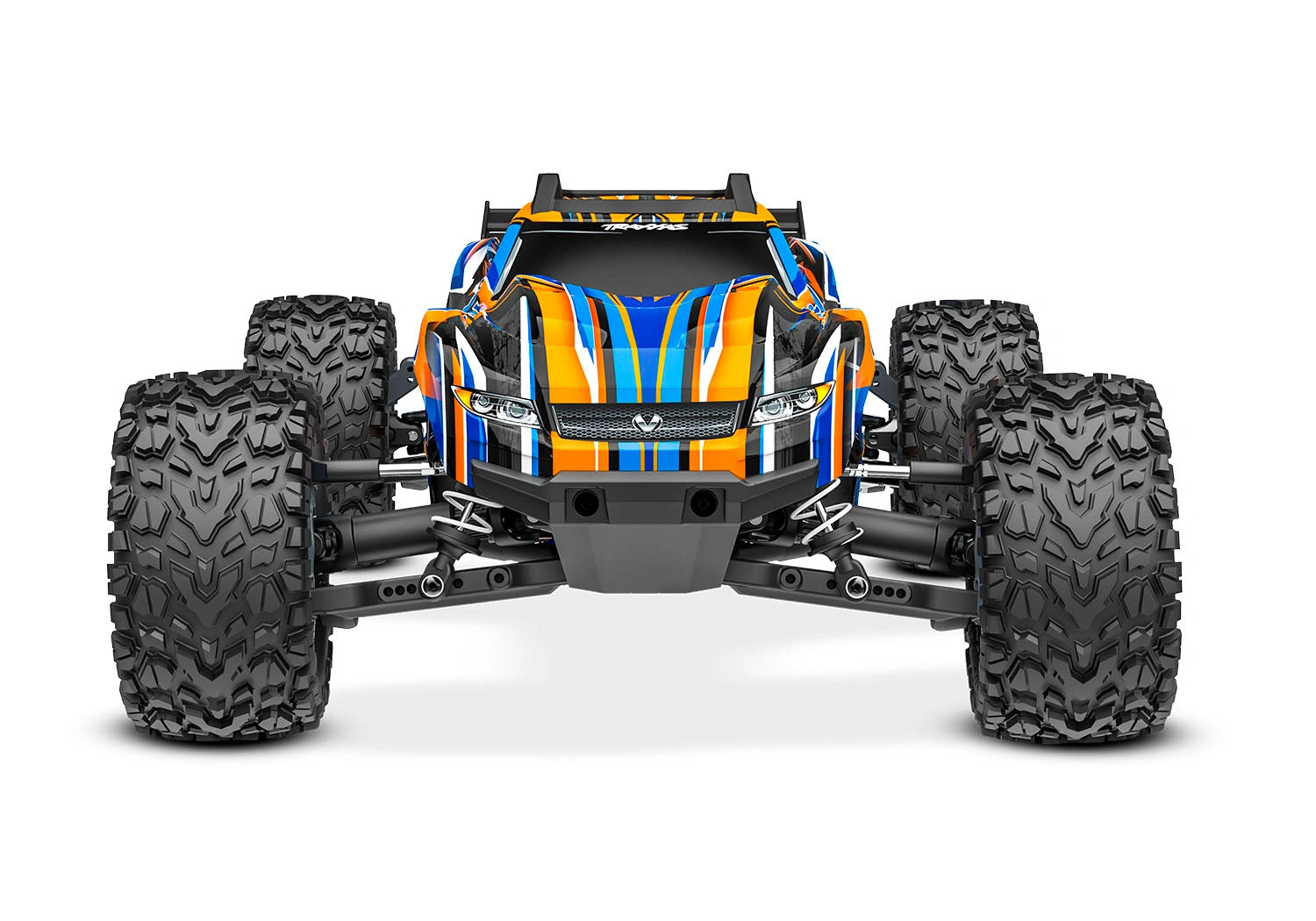

Experience the Traxxas Rustler 4X4 VXL—fast, tough, and brushless! This 4WD RC truck delivers extreme speed, durability, and all-terrain fun for any RC driver.

What You’ll Need

• 2-3s Lipo and compatible charger
• Four AA alkaline batteries for the transmitter

Features

• 65+ MPH Top Speed
• Clipless ProGraphix Body
• Extreme Heavy Duty Upgrade Kit Installed
• TQi 2.4 GHz High Output Radio System
• VXL-3s Waterproof ESC and Velineon Brushless Motor
• Traxxas Stability Management® (TSM)

Specifications

• Model Name:    Rustler 4X4 VXL

• Model Type:    Stadium Trucks

• Model Speed:    65+ mph with 3-cell LiPo and 20/54 gearing

• Model Skill Level:    2

• Scale:    1/10

• Weight:    5.12 pounds (2.32 kg)

• Length:    18.78 inches (477 mm)

• Width:    12.94 inches (329 mm)

• Front Track:    12.94 inches (329 mm)

• Rear Track:    12.94 inches (329 mm)

• Height:    6.35 inches (161 mm)
• Wheelbase:    11.62 inches (295 mm)

• Center Ground Clearance:    1.1 inches (27 mm)

• Drivetrain:    Shaft driven 4WD

• Transmission:    Single speed

• Differential Type:    Hardened steel bevel, sealed, limited slip

• Gear Ratio (Internal):    13.97:1

• Gear Pitch:    32 pitch

• Servo(s):    2075 digital high-torque waterproof

• Radio System:    TQi™ 2.4 GHz 2-channel transmitter with TSM® receiver

• Battery Compartment Specs:    162 mm X 50 mm X 23 mm, 25 mm

Motor Specifications

• Motor Name:    Velineon® 3500

• Motor Type:    Sensorless brushless

• Motor Weight:    9.24 ounces (262 g)

• Motor Length:    3.03 inches (77 mm) overall length, 2.2 inches (56 mm) can length

• Motor Diameter:    1.41 inches (36 mm)

• Motor Shaft Size:    3 mm

• Motor Connector Type:    3.5 mm bullet

ESC Specifications

• ESC Name:    VXL-3s™ electronic speed control

• ESC Type:    Brushless

• ESC Case Size:    1.54 inches (39 mm) / 2.18 inches (55 mm) / 1.30 inches (33 mm)

• ESC Weight:    3.17 ounces (90 g)

• Motor Connectors:    3.5 mm bullet

• Battery Connectors:    Traxxas High-Current Connector

• ESC Power Wire:    12 gauge Maxx® Cable

What’s In The Box

• Rustler 4X4 VXL with Velineon VXL-3s and 3500 kV motor
• Quick Start Guide

• TQi 2.4 GHz radio system

• High quality maintenance tools

• Includes speed pinion
